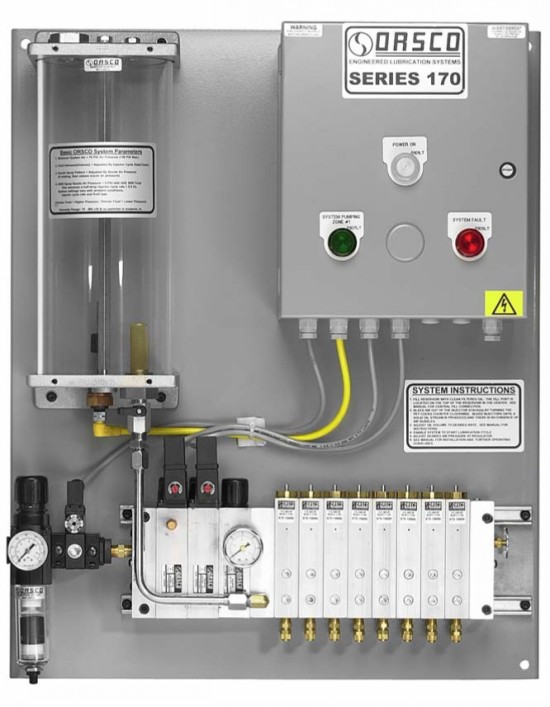

Series 170 Precision Oil Spray System

The Series 170 precision oil spray system is simple to install, easy to operate and maintain. With the different control options and nozzle quantities it is a flexible application oriented package.

System Features

Lubricates up to 16 lubrication points
output volume 0.015 cu. cm or 0.060 cu. cm
One dedicated positive displacement injector per spray nozzle
Viscosity range 100 to 2,000 SUS /460 to 9,200 CST
System can be mounted up to 18 m (60 ft) from spray nozzles
